【Package including】

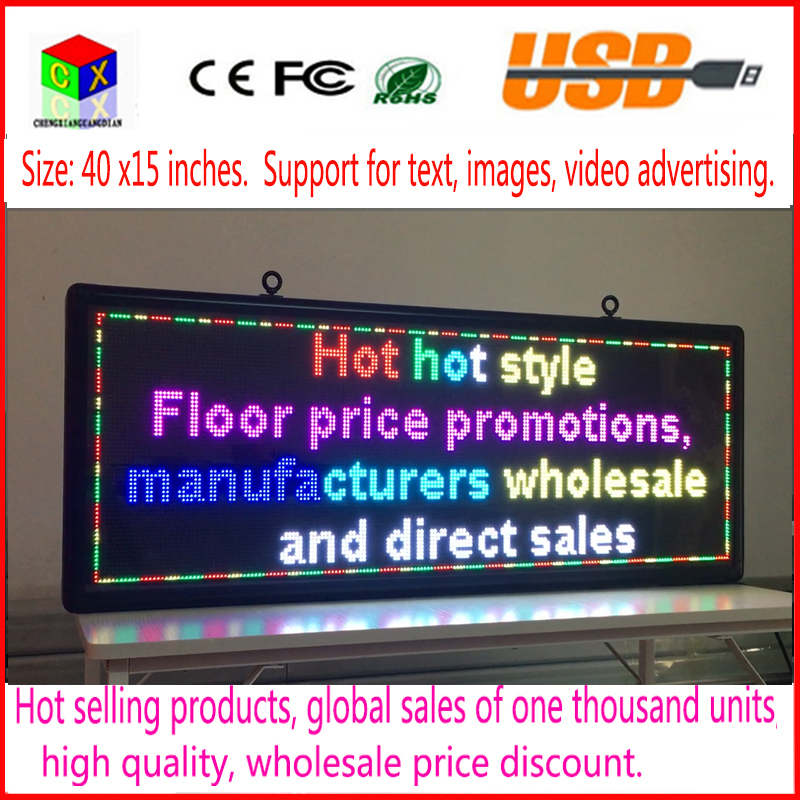

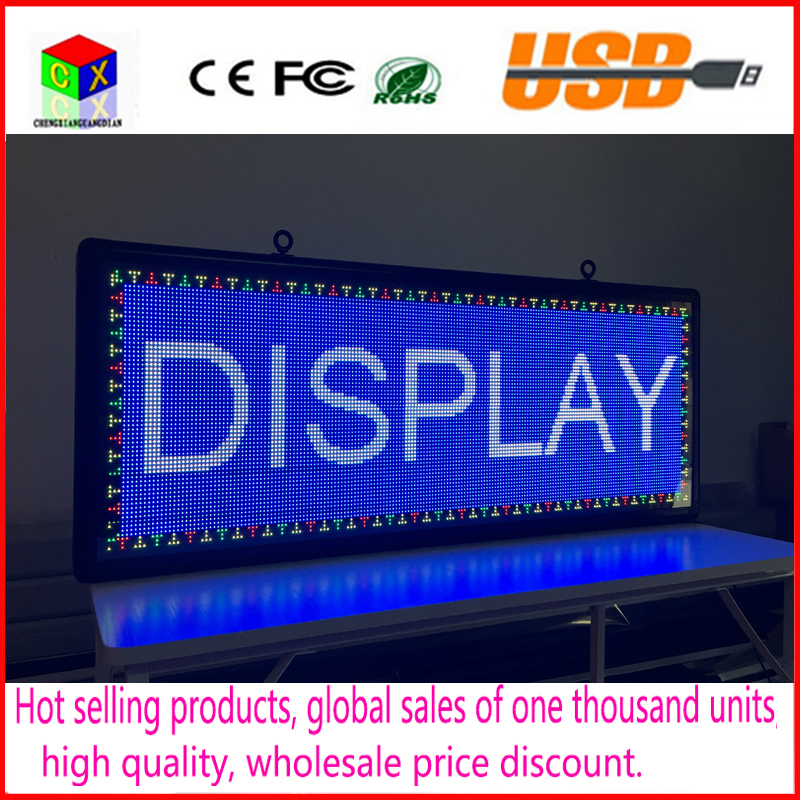

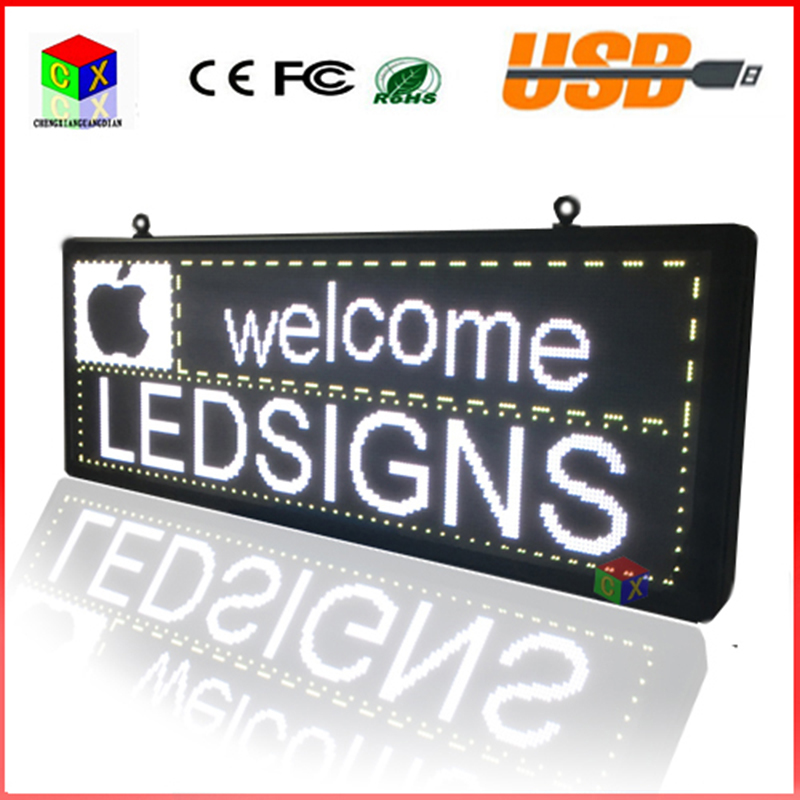

2 pcs P5 sdk outdoor full color led display with Aluminum frame，
waterproof is IP45. Size is 103x39cm. product can display Temperature,
text, time. The spare parts are: 2 unit module, 1unit power supply and 1 unit control card Pls fill in your correct recieve address on the Paypal, thank you.
【Feature & Function】
*Brightness is adjustable
*Display speed is adjustable
* Letter font and letter size are adjustable
*Housing material is Aluminium alloy and housing color is black
*Default function is text letter, time and date,image, video ;(temperature function is for option.)
*Plug type support EU standard plug/US standard plug/UK standard plug/AU standard plug.
*Super Low Energy Consumption
*Signal cable interface is RS232
*Support: Win8/Winxp/ Win7/ W10
*Waterproof: IP45
*Tube Chip Color: Full Color outdoor
*Brightness: 6000CD
| Model : CX-PH5 RGB02B |
|
| |
|
| LED Module model |
| color |
1R1G1B |
| LED Type |
SMD3535 |
| Module Resolution |
W 64 x H 32 |
| Module Size (mm) |
W 320 x H 160 |
| Driving Method |
1/8scan |
| LED display parameter |
| voltage |
220V or 110V ± 10% |
| Material |
Outdoor aluminum waterproof ( IP 45 ) |
| Cabinet Size （mm) |
W 1030x H390 MM (40X15 Inch) |
| Cabinet Resolution (pixel) |
W 192 x H64 |
| power Consumption Max (w/set） |
400 Watt |
| Brightness ( CD/㎡） |
≥6000 |
| Net Weight (kg) |
12 kg |
| Viewing Angle |
120° / 70° |
| Theoretic LED Working Life |
More than 100000 hours |
| control method |
RS232 |
| display function |
Date,Text,logo |

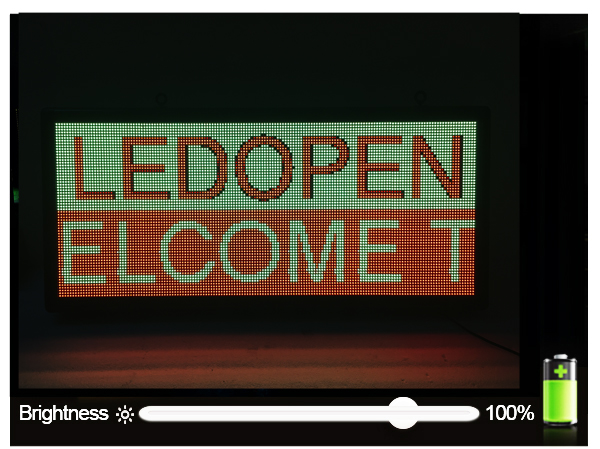

High brightness adjustment
High quality effect
Cx outdoor LED display high brightness
And high-definition effects to ensure
High quality picture.Making it very
suitable for store advertising, window
advertising,Five-star hotel, commercial
advertising,Station terminal,Outdoor
stadium And other places.Brightness
level is set freely. |
|
 |

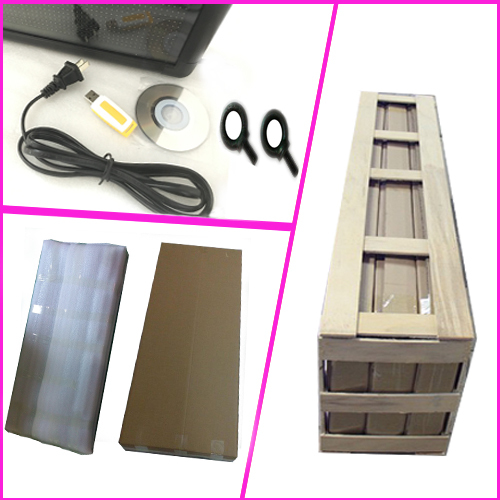

Standard carton packaging
4 layer protection guarantee
Safe transport
Cx LED rolling display, designed a
standard carton packaging,
Internal 4-layer security, packaging,
transport safety,

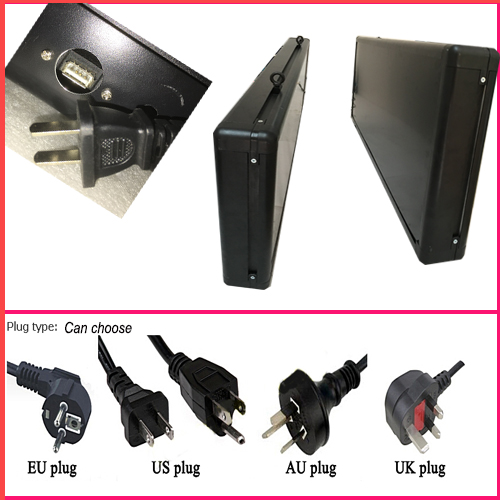

US plug, EU plug, AU plug, UK plug and
so on.Use more convenient.
|
