【Package including】

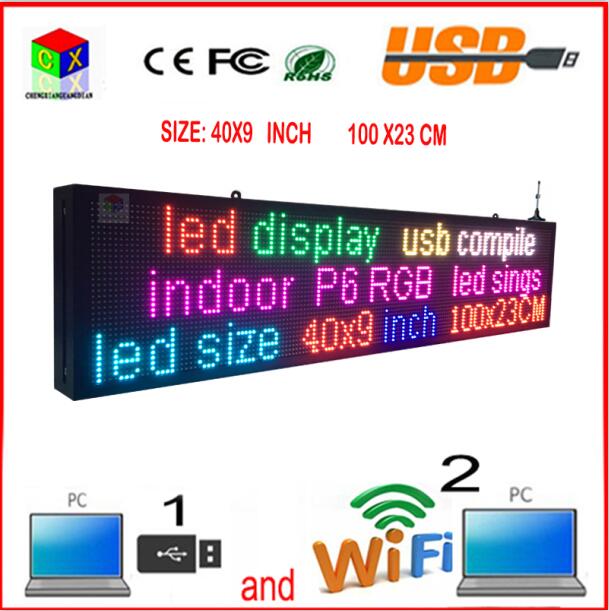

*LED sign 1PCS (size 100x23cm / 40x9 inch
*Signal connection cable
* Professional installation bracket
*USB with free software and English user manual
【Feature & Function】
*Brightness is adjustable
*Display speed is adjustable
* Letter font and letter size are adjustable
*Housing material is Aluminium alloy and housing color is black

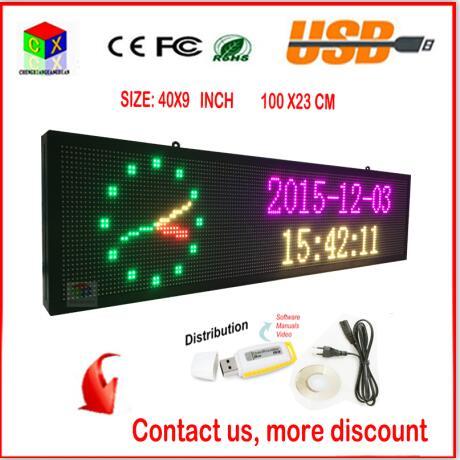

*Default function is text letter, time and date;(temperature function is for option.)

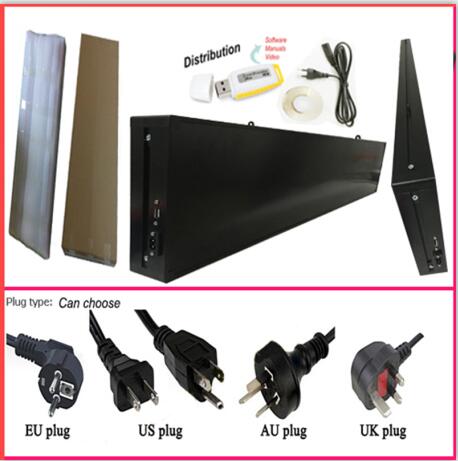

*Plug type support EU standard plug/US standard plug/UK standard plug/AU standard plug.
*Super Low Energy Consumption

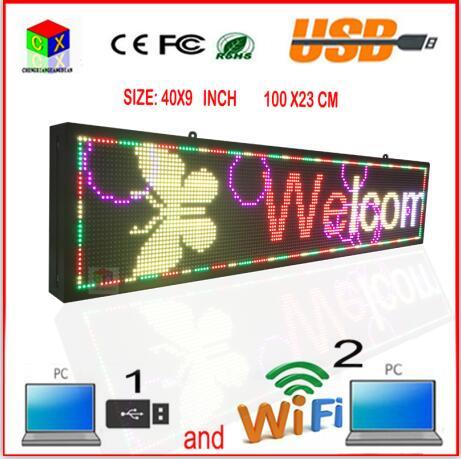

*Signal cable interface is USB +wifi
*Support: Win8/Winxp/ Win7/ W10
*Waterproof: IP20
*Tube Chip Color: Full Color indoor
*Brightness: 2000CD
| Model : CX-PH6 RGB06A |
|
| |
|
| LED Module model |
| color |
1R1G1B |
| LED Type |
SMD3528 |
| Module Resolution |
W 32x H 32 |
| Module Size (mm) |
W 192x H 192 |
| Driving Method |
1/16 scan |
| LED display parameter |
| voltage |
220V or 110V ± 10% |
| Material |
indoor aluminum ( IP20 ) |
| Cabinet Size （mm) |
W 1000x H230 MM (40X9Inch) |
| Cabinet Resolution (pixel) |
W 160 x H32 |
| power Consumption Max (w/set） |
100 Watt |
| Brightness ( CD/㎡） |
≥2000 |
| Net Weight (kg) |
6 kg |
| Viewing Angle |
120° / 70° |
| Theoretic LED Working Life |
More than 100000 hours |
| control method |
USB +wifi port control (network, optional) |
| display function |
Date,Text,Time |
Here at CXGuangDian, our goal is to provide our customers with the best LED solutions for their needs, with many years of LED Production experiences; from manufacturing single LED diode light sources, LED name tag, desktop/wall LED Signs, to full building size full color LED displays, we careful craft each and every single units we build to ensure the best quality products that comes out of our work.
Here at CXGuangDian, our goal is to provide our customers with the best LED solutions for their needs, with many years of LED Production experiences; from manufacturing single LED diode light sources, LED name tag, desktop/wall LED Signs, to full building size full color LED displays, we careful craft each and every single units we build to ensure the best quality products that comes out of our work.
Shipping
Free shipping for all products
payment
1. palpay
2 . T T
3. Western Union
Return
Policy |
If the product you receive is not as described or low quality, the seller promises that you can keep the product and agree the refund directly before order completion (when you click ‘Confirm Order Received’ or exceed confirmation timeframe).
long details
|
Seller
Service |
- On-time DeliveryIf you do not receive your purchase within 23 days, you can ask for a full refund before order completion (when you click ‘Confirm Order Received’ or exceed confirmation timeframe).
|
-
Full Refund if you don't receive your order
You will get a full refund if your order does not arrive within the delivery time promised by the seller.
-
Full or Partial Refund , if the item is not as described
If your item is significantly different from the seller’s product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
Please be aware that due to your computer monitor display the color may have some difference between the picture and the physical item
Please according to you to buy the dress fabric, select the corresponding fabric color chart
