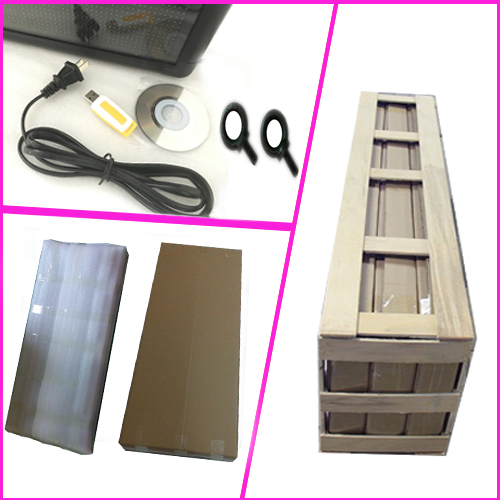

【Package including】
*LED sign 1PCS (size 103x45cm /40x18 inch)
*Signal connection cable
* Professional installation bracket
*USB with free software and English user manual
【Feature & Function】
*Brightness is adjustable
*Display speed is adjustable
* Letter font and letter size are adjustable
*Housing material is Aluminium alloy and housing color is black
*Default function is text letter, time and date,image, video ;(temperature function is for option.)

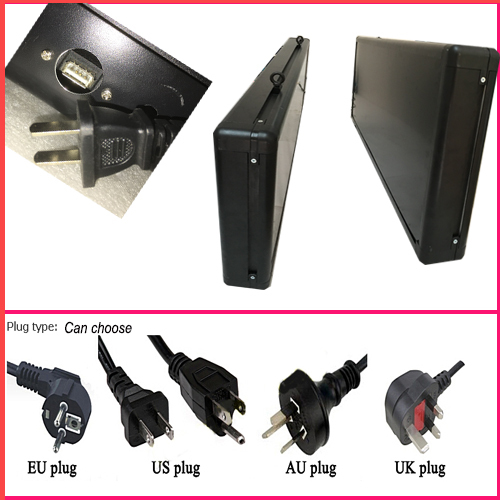

*Plug type support EU standard plug/US standard plug/UK standard plug/AU standard plug.
*Super Low Energy Consumption
*Signal cable interface is USB
*Support: Win8/Winxp/ Win7/ W10
*Waterproof: IP45
*Tube Chip Color: Full Color outdoor
*Brightness: 6000CD
Model : CX-PH6 RGB06B |
|
|
|
LED Module model |
color |
1R1G1B |
LED Type |
SMD3535 |
Module Resolution |
W 32x H 32 |
Module Size (mm) |
W 192 x H 192 |
Driving Method |
1/8scan |
LED display parameter |
voltage |
220V or 110V ± 10% |
Material |
Outdoor aluminum waterproof ( IP 45 ) |
Cabinet Size (mm) |
W 1030x H450 MM (40X18 Inch) |
Cabinet Resolution (pixel) |
W 160 x H64 |
power Consumption Max (w/set) |
400 Watt |
Brightness ( CD/㎡) |
≥6000 |
Net Weight (kg) |
18 kg |
Viewing Angle |
120° / 70° |
Theoretic LED Working Life |
More than 100000 hours |
control method |
USB port control (network, wifi,optional) |
display function |
Date,Text,logo,image,video |
Here at CXGuangDian, our goal is to provide our customers with the best LED solutions for their needs, with many years of LED Production experiences; from manufacturing single LED diode light sources, LED name tag, desktop/wall LED Signs, to full building size full color LED displays, we careful craft each and every single units we build to ensure the best quality products that comes out of our work.
We are manufacturer of LED sign, we also accept custom sign. If you have big quantity please feel free to contact us.
Here at CXGuangDian, our goal is to provide our customers with the best LED solutions for their needs, with many years of LED Production experiences; from manufacturing single LED diode light sources, LED name tag, desktop/wall LED Signs, to full building size full color LED displays, we careful craft each and every single units we build to ensure the best quality products that comes out of our work.
